fuel lines???

ct263sgte · Force Sensitive Joined: 07 Nov 2007 Posts: 17

I have my subaru engine in the car i need to post up some pics. I am at the point that i need to run my fuel lines and am unsure if i need to make any modifications to my factory fuel tank? the car is a 73 super beetle. help

ricola · Posted: Mon Feb 04, 2008 10:39 am Post subject:

stock outlet may not be big enough depending on engine, you will also need return and vent connections fitting. I would fit swirl pot and pump internally too...
_________________
http://www.ricola.co.uk

ct263sgte · Force Sensitive Joined: 07 Nov 2007 Posts: 17

i have the ej25 dohc engine and i am using an inline fuel pump, I don't have a fuel tank yet. I will order one soon, the one that came with the car is rusted out to badly. thanks for the advice Cool

richbaker78 · Teacher of Padawans Joined: 31 Jan 2006 Posts: 1298

i welded the whole subaru pump and flange into mine (van tank) which will give you all the pipes you need. I bought a donor subaru tank complete with everything for £50. Dont forget to baffle the inside of the tank as well if you do this.

Once all the mods were done I used the Frost fuel tank lining kit to seal it all up again and protect the tank for future.

subaru pump assembly

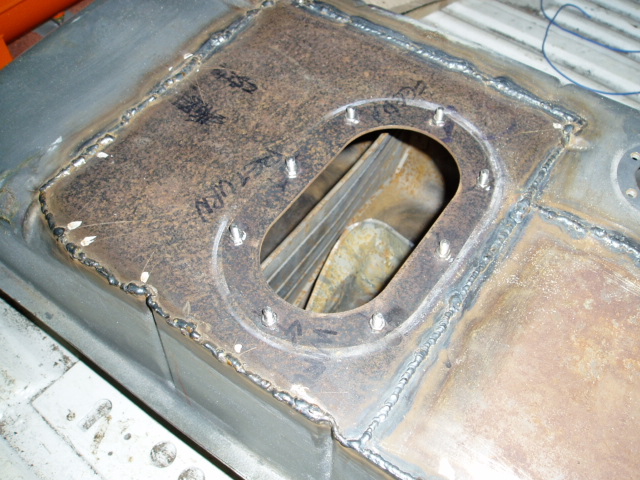

flange Alex FTS got water jet cut for me

you can just see the baffles inside...

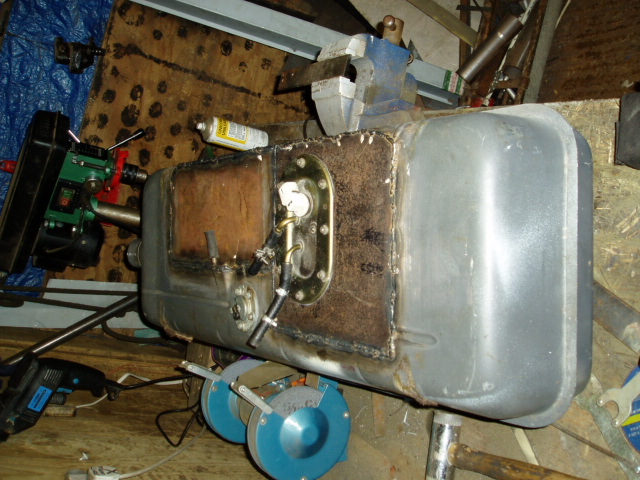

all bolted together

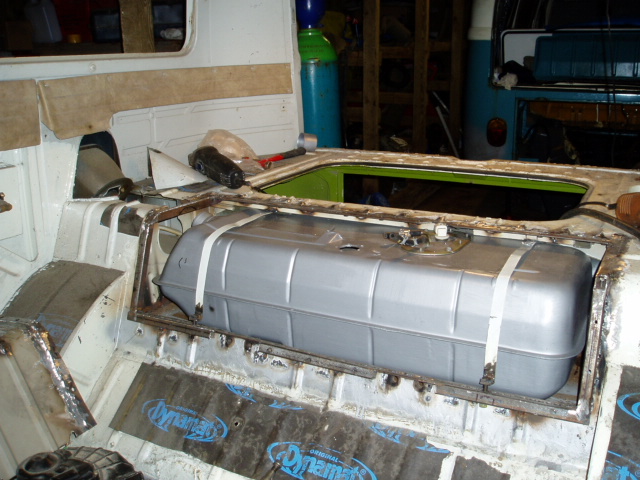

finished

ElusiveStranger · Posted: Tue Feb 05, 2008 6:37 pm Post subject:

If you're staying with the inline pump you might find some of this helpful (tis cheap too Happy

)

http://www.vwkd.co.uk/bb/viewtopic.php?t=228http://www.vwkd.co.uk/bb/viewtopic.php?t=228
_________________
The advice you receive on here is worth the paper it's written on.
Your experiences are worth shed loads to others, including the f'ups - live and learn.
Wouldn't YOU rather learn by someone else's mistakes? So would they.

'78 Bay, 2 litre 091 box, EJ20 NA & the ashtray's on the 'right' side.
I don't lean forward for hills any more Grin

Bugger, missed out on "Live fast, die young"

ct263sgte · Force Sensitive Joined: 07 Nov 2007 Posts: 17

thanks for the pics mates. Fuel tank should be here soon along with my new front tires Happy

sven · Jedi Guardian Joined: 27 Dec 2006 Posts: 814

When I see this, maybe I should cut out the fuel pump fro my old Legacy before I send it to the wreck yard...
Short question (my donor car is 140 k's away, I can't have a look), how difficult is it to rip of the fuel tank on the Subaru?

richbaker78 · Teacher of Padawans Joined: 31 Jan 2006 Posts: 1298

in a legacy i dont know - but in an impreza it was a bit of a pain! as the donor for my tank was a 4wd I had to remove the prop shaft to get it out ! That said i was in a scrap yard with very few useful tools with me, it was raining and the whole car was balancing on a few tyres! so it made it harder than it really was!!!

If your car is near an electricity supply I would get the grinder or air hacksaw out an go at it from above. Or if yours is a 2wd then it will be easy.

hansend23 · Posted: Tue Mar 10, 2009 6:13 am Post subject:

surge tank?? cant find much info about them.do i need a fuel system surge tank?
ej22 sohv 1991, in a bug? i have a stock tank with a return line i added.
no internal swerl pot.
_________________
just do it!

rusty69bus · Jedi Master Joined: 24 Apr 2006 Posts: 467 Location: essex

sven my legacy had the prop running under the tank too, if you cut out the top of the tank you could use a largish chisel to cut the bottom of the tank out
_________________

sven · Jedi Guardian Joined: 27 Dec 2006 Posts: 814

Weird, I dismounted the pump long time ago, more or less a couple of weeks after my first post (which is a year ago...). The weird thing is that it was very easy, I only had to remove the carpet in the trunk and the floor was really easy to remove as well.
Took me less than 10 minutes to get the pump out. Happy
